Model: AURA
Material: Aluminum

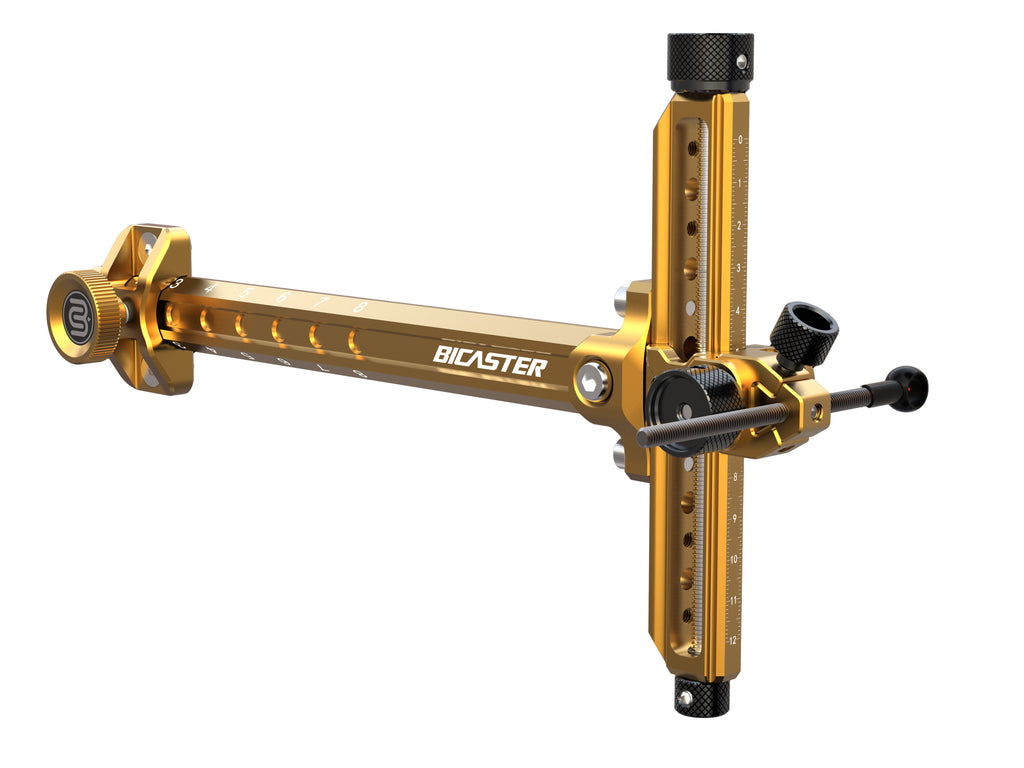

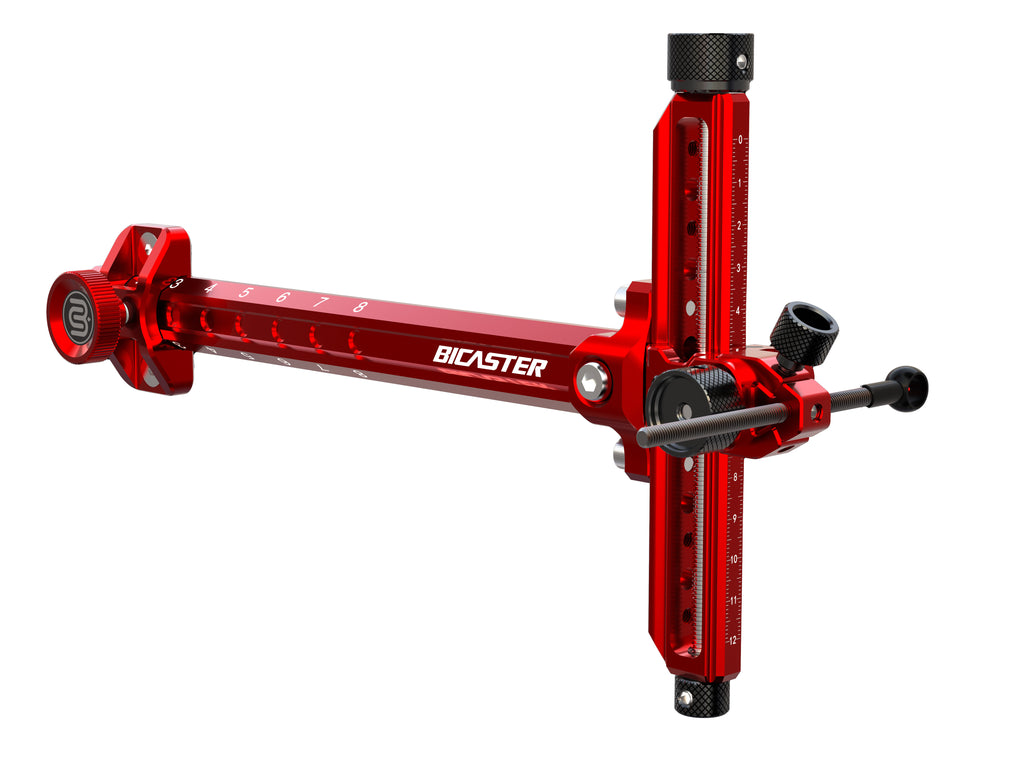

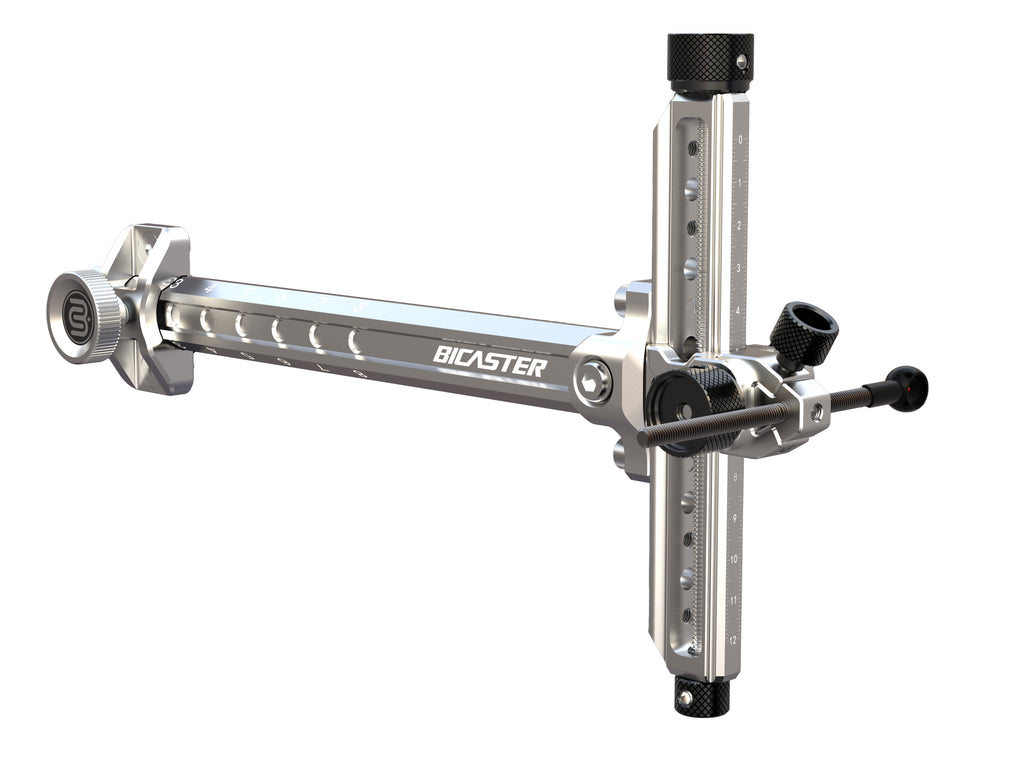

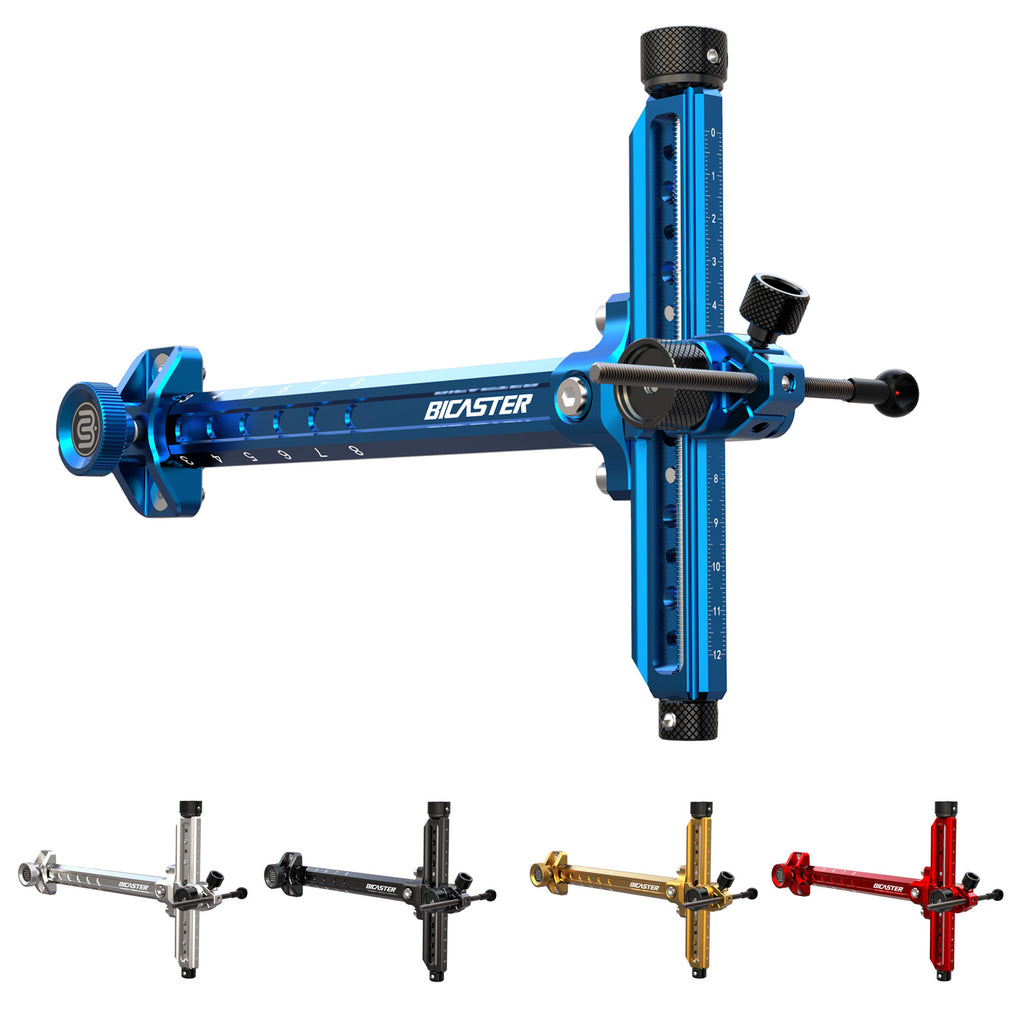

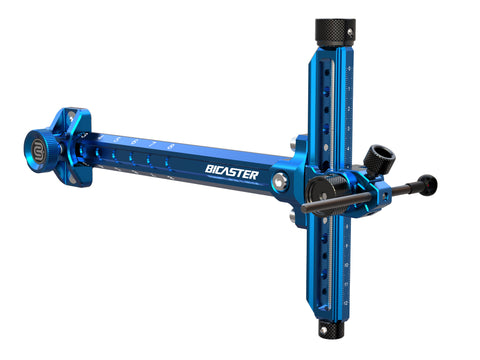

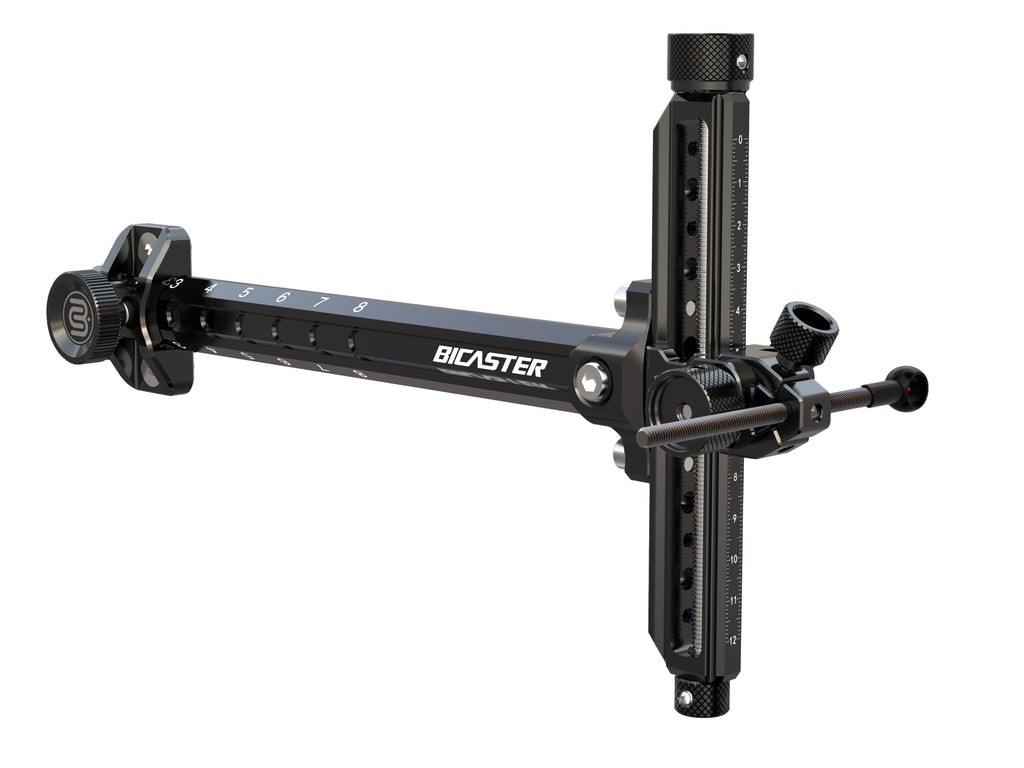

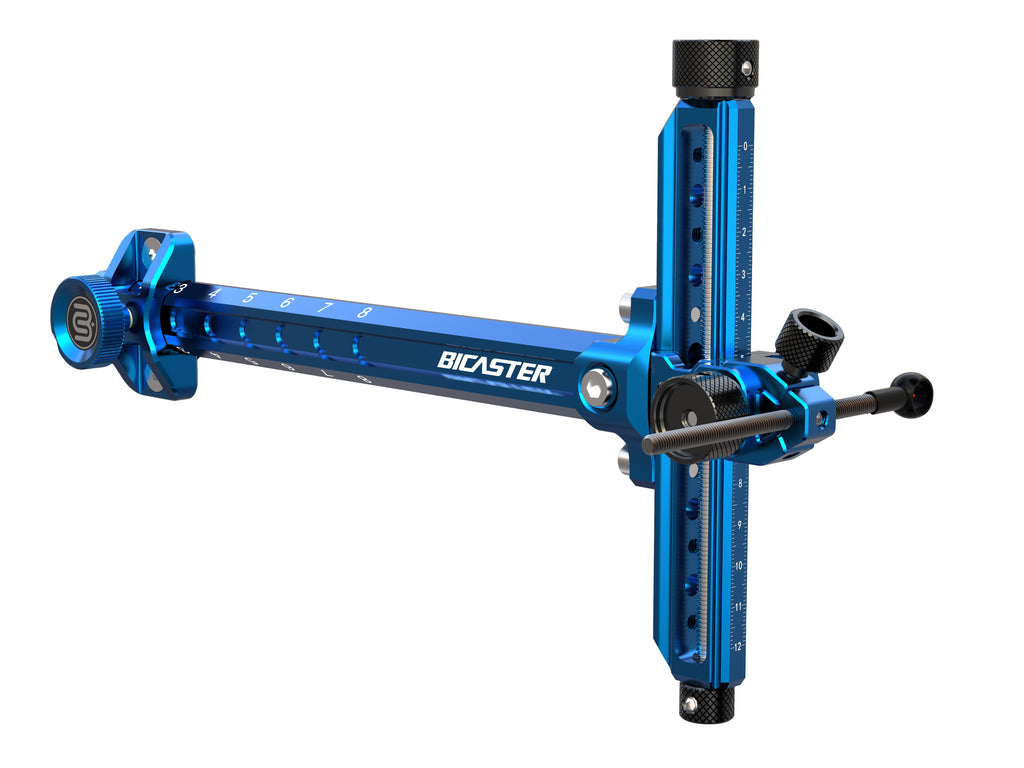

Color: Black/Blue/Gold/Red/Silver
Weight: 200g
Thread: #10-24
Sight Adjustment Instructions
1. Fine Adjustment – Left & Right
Rotate the horizontal fine-adjustment knob to move the sight point left or right.
One full rotation = approx. 0.8 mm (1/32")
Each click = approx. 0.04 mm (0.0016")
One full rotation = 20 clicks
---
2. Fine Adjustment – Up & Down
Rotate the vertical fine-adjustment knob to move the sight point up or down.
One full rotation = approx. 1 mm (1/24")
Each click = approx. 0.05 mm (0.002")
One full rotation = 20 clicks
---
3. Rapid Vertical Adjustment
Press the release lever and slide the scale block up or down to quickly adjust the vertical position of the sight.
⚠ Ensure the lever is fully pressed so that the locking block engages correctly.
---
4. Quick-Adjust Mount
Loosen the main locking screw on the mount to quickly adjust its angle. After loosening, the mount can be tilted upward or downward as needed
